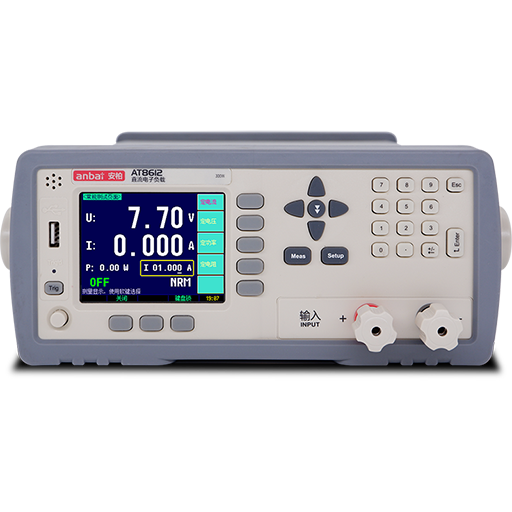

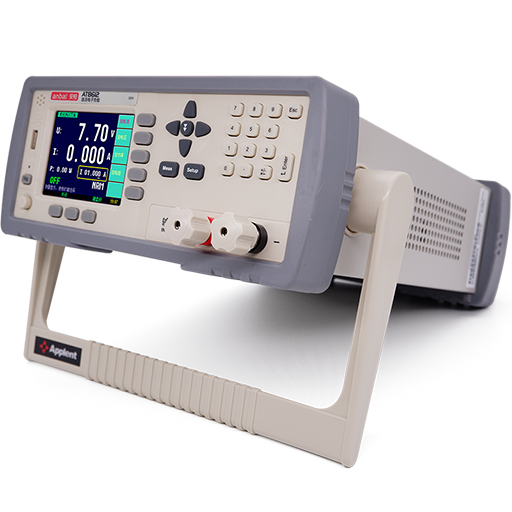

AT8612 DC Electronic Load
ACTIVE
RS232
SCPI
DATA LOGGERUSB-DISK
OVERVIEW
    AT8612 DC Electronic load adopts high-performance ARM microprocessor with multiple processors, 3.5 inches true color LCD display, Chinese and English language is switchable, which makes the operation more convenient. It has superior speed and performance. AT8612 offers four load modes (CC, CV, CP, CR), and there are 6 modes of measurement function: NRM、TRN、SEQ、ATF、BAT and SHT.

    You can use the built-in file editor or RS232 and USB interface to edit the order list and list file automatically, and complete high-efficient measurement. In addition to testing linear power supply and switching power supply, AT8612 can better test battery charger and batteries, it can meet the requirements of power supply factories and related factories.
FEATURES
  • Short Circuit: Current ≈30A, Resistance ≈40mΩ
  • Transition: 10 files, Frequency: 0.1Hz~1kHz
  • Sequence List Test(SEQ): 10 files,100steps/file
  • Auto Test File(ATF): 10 files, 20steps/file
  • Battery Test: Capacity:999.99AH max
  • Trigger: Interanl/Bus/External
  • Interface: RS232C/Handler
  • Programming Language: SCPI and simple protocol
  • Display: 3.5 inches true-color LCD display screen
  • 4W Remote sensing capability
SPECIFICATIONS
Input Rating300W、300V、30A
CC0-3A:Resolution:0.0001A Accuracy:0.05% 0-30A:Resolution:0.001A Accuracy:0.1%
CV0-18V:Resolution:0.001V Accuracy:0.05% 0-300V:Resolution:0.01V Accuracy:0.05%
CP0-100W:Resolution:0.001W Accuracy:1% Above 300W:Resolution:0.01W Accuracy:1%
CR0.1~99Ω:Resolution:0.01Ω Accuracy:1% 100~4kΩ:Resolution:0.1Ω Accuracy:1%
Accuracyvoltmeter accuracy:0.05%, Ampere meter accuracy:0.1%
Short CircuitCurrent: aboout 30A; internal resistance: about 40mΩ
Transition0.1Hz~25kHz
List Test10 files, 100 steps/ file
Test File10 files, 20 steps/ file
Battery TestMAX 999AH
InterfaceRS232C
OptionalRS485
Protect5 level security protect
Other Functions3.5 inch true color LCD display, 4W remote test,intelligent cooling
Power SupplyVoltage:220VAC, Fre:50Hz, Power:20VA
Dimension & Weight264*107*350mm / 5KG
AccessoriesATL509 test cable
APPLICATIONS
    Switching power supply and linear power supply
    Charger measurement
    Battery Capacity Test
