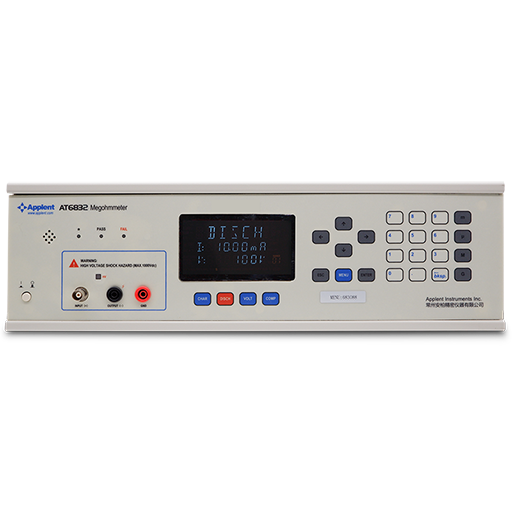

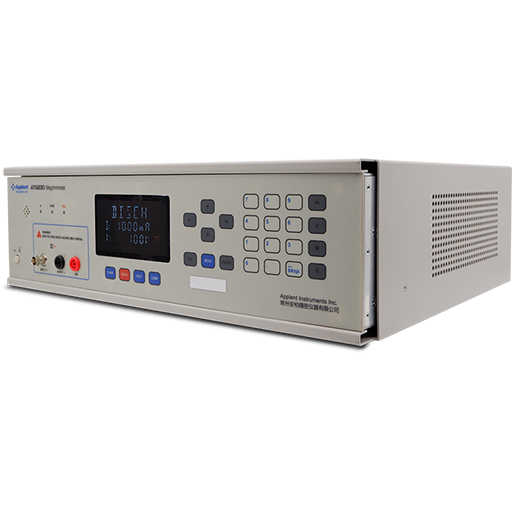

AT6832 Leakage Current Meter
ACTIVE
RS232HANDLER
SCPI
DATA LOGGER
OVERVIEW
    AT6832 is a leakage current detection instrument specially designed for capacitance sorters, and it is controlled by a high-performance microprocessor. With pre-charged power supply and independent test power supply, six-range test, leakage current measurement range can reach 0.1nA~20mA, and the maximum display digits are 9999. The test speed can reach 55 times per second, and the ultra-high-speed test provides the best solution for automated production.

    The device has a sorting function, sorting alarm setting, and optional Handler interface, which can be used in automatic sorting systems to complete automatic assembly line testing. And can be equipped with RS-232 interface for process control and data acquisition without analysis.

    The computer process control instructions are compatible with SCPI (Standard Command for Programmable Instrument can be programmed to control the standard command set), efficiently complete the process control and data acquisition functions.

    The unique dual power supply design of AT6832 is especially suitable for the automated test of capacitors. Computer remote control instructions are compatible with SCPI (Standard Command for Programmable Instrument), which can efficiently complete remote control and data acquisition functions.
FEATURES
  • High brightness, ultra-clear four-color VFD display, multiple parameters are displayed at the same time.
  • The charging test is automatically switched.
  • Peak hold function.
  • Full range open circuit clear function.
  • Comparator output: the sorting result can be output through RS232C or Handler interface.
  • Sound: You can set the sound switch.
  • Adjustable sound and display: Users can set the GD/NG sound and trigger mode according to their needs: internal trigger, manual trigger, external trigger and remote trigger.
  • Adjust the display brightness.
  • Optional foot switch.
SPECIFICATIONS
ParametersLeakage current
Accuracy1%
Output Voltage10V～170VDC
Measurement RangeCurrent:0.1uA~20mA Unaging test current: 160 mA
Max Reading9999
RangeAuto & Manual, 6 ranges
Charging Current500mA(MAX)/1.5A（MAX）
Speed20 times/s
Result DisplayDirect reading
open - circuit reset full range
Charging Timer999.9s
Comparator1 group record, GD/NG
InterfaceRS-232, Handler interface
Power SupplyVoltage: 198VAC～240VAC Fre：50Hz Power：50VA
Dimension & Weight445mmx129mmx351mm Weight：8kg
APPLICATIONS
    Production of electrolytic capacitors.
    Capacitor inspection.
    Dielectric materials and insulation resistance testing of wires and cables, etc.
