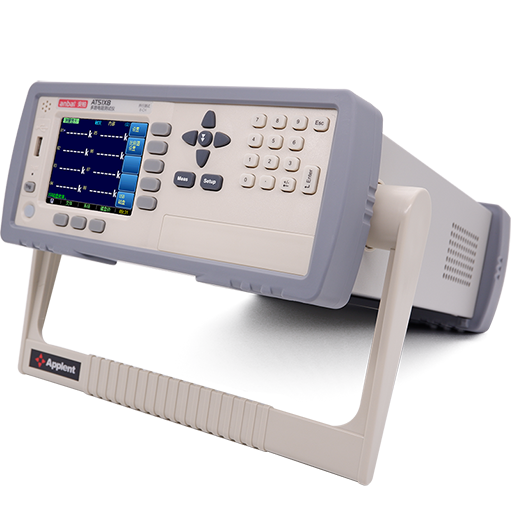

AT5120 Multi-channel Resistance Meter
ACTIVE
RS232TEMP-COMP
SCPI
DATA LOGGERUSB-DISK
OVERVIEW

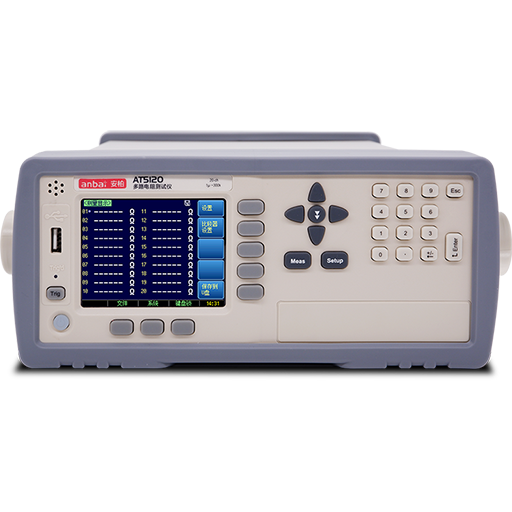

    The AT5120 is a newly designed high-precision, wide-range, multi-channel resistance tester that can scan 20 resistance. Controlled by high performance ARM microprocessors. True color 3.5 inch LCD can display 20 resistance values at the same time, each channel can be set separately. AT5120 can test 1μΩ~30KΩ resistance, maximum display is 30,000. At the same time, it also has a standard temperature compensation function, which can adapt to different requirements of test. Applied to automation equipment, HANDLER interface (PLC interface) is added to output GD/NG signal and RS-232C interface, support SCPI protocol and Modbus protocol (Modbus has become the national standard GB/T19582-2008) applied to automatic sorting system to complete automated assembly line testing to improve production automation testing capabilities.
FEATURES
  • 20 channels resistance scan measurement
  • True-color TFT-LCD display
  • Can set resistance high/low limit independently
  • Temperature compensation function
  • Keyboard lock function
SPECIFICATIONS
Channel20 channels
ParameterDCR
Accuracy0.05%
Measurement Range1μΩ~30KΩ
Signal Sourcecurrent:<1A
Rangeautomatic & manual
Speed3.4S/10 channels , 830ms/10 channels, 350ms/10 channels, 230ms/10 channels
Result Display20 channel direct display
Max Reading30,000
Adjustmentshort-circuit reset full range
Comparator20 channel can set independently
TriggerInternal & remote trigger

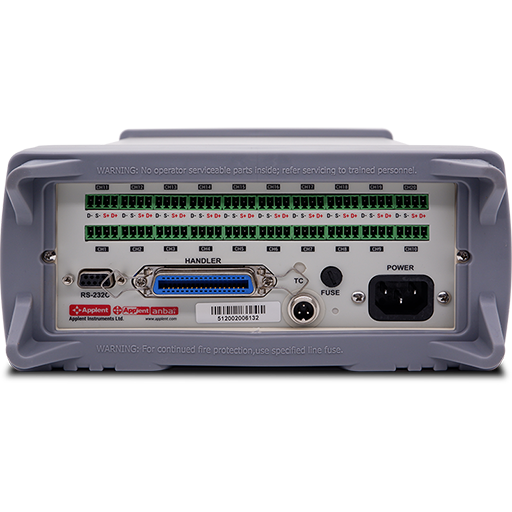

InterfaceRS-232C (SCPI order set) HANDLER (PLC ) interface
TemperatureAccuracy:0.2℃ Test range:0~80℃
Method4 terminal shielding (2 check terminal & 2 driving terminal)
Other FunctionsColor LCD display, can set resistance upper & low limit,temperature compensation; keyboard lock function
Power SupplyV: 198VAC~250VAC Fre:50Hz Power:15VA
Dimension & Weight216*88*323mm / 4kg
AccessoriesATL503 kelvin Test (8 sets) , ATL108 232C communication cable
APPLICATIONS
    Multiple winding transformer DC resistance measurement
    Coil DC resistance measurement
    Motors Multiple winding resistance measurement
