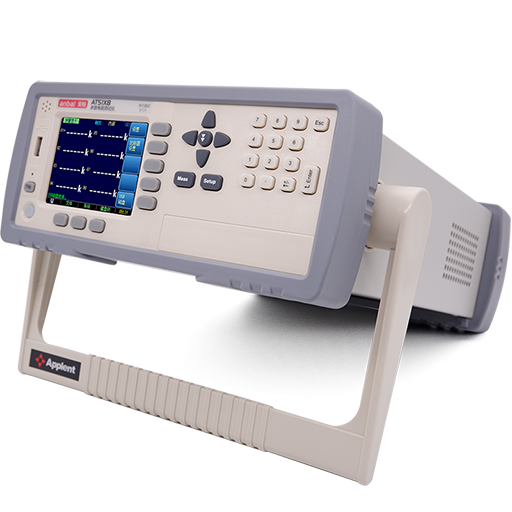

AT5130 Multi-channel Resistance Meter
ACTIVE
RS232HANDLERTEMP-COMP
RS485GPIBUSB-232LANOPTIONS
SCPIMODBUS
DATA LOGGERUSB-DISK
OVERVIEW
    AT5130 is a newly designed high-precision, wide-range, multi-channel resistance tester that can scan and test 30 resistors. Controlled by high performance ARM microprocessors. True color 3.5 inches LCD can display 30 resistors at the same time, and each channel can be set separately. AT5130 can test 1μΩ~30KΩ resistors, maximum display is 30,000. At the same time, it also has a standard temperature compensation function, which can adapt to different requirements of the test. Applied to automation equipment, HANDLER interface (PLC interface) is added to output GD/NG signal and RS-232C interface, support SCPI protocol and Modbus protocol (Modbus has become the national standard GB/T19582-2008) applied to automatic sorting system to complete automated assembly production line testing to improve production automation testing capabilities.
FEATURES
  • 30-channel resistance scanning measurement

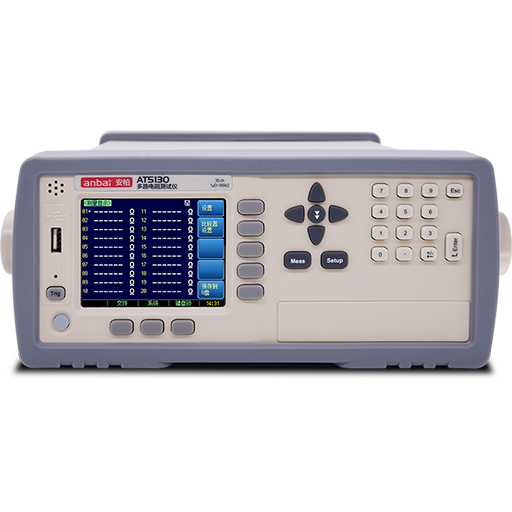

  • True color LCD display,
  • Upper and lower limits of resistance can be set independently.
  • With temperature compensation
  • Keyboard lock
SPECIFICATIONS
Channel30 channels
Accuracy0.05%
Measurement Range1μΩ~30KΩ
Signal Sourcecurrent:<1A
Rangeautomatic & manual
Speed3.4S/10 channels , 830ms/10 channels, 350ms/10 channels, 230ms/10 channels
Result Display20 channel direct display
Max Reading30,000
Adjustmentshort-circuit reset full range
Comparator30 channel can set independently
TriggerInternal & remote trigger
InterfaceRS-232C (SCPI order set) HANDLER (PLC ) interface
TemperatureAccuracy:0.2℃ Test range:0~80℃

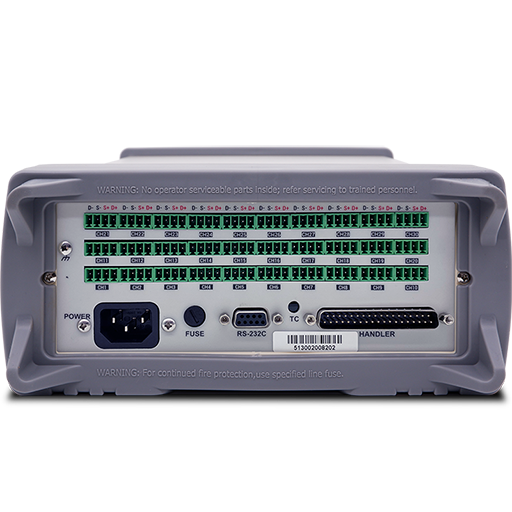

Method4 terminal shielding (2 check terminal & 2 driving terminal)
Cantact CheckingD+/S+, D-/S-
Other FunctionsColor LCD display, can set resistance upper & low limit,temperature compensation; keyboard lock function
Power SupplyV: 198VAC~250VAC Fre:50Hz Power:15VA
Dimension & Weight216*88*323mm / 4kg
AccessoriesATL503 kelvin Test (8 sets) , ATL108 232C communication cable
APPLICATIONS
    Multiple winding transformer DC resistance measurement
    Coil DC resistance measurement
    Motors Multiple winding resistance measurement
