| Output Voltage Range | ○ |
| Voltage | 0~80V |
| Electric current | 0~20A |
| Power | 400W |
| Load regulation rate | ○ |
| Voltage | ≤0.01%+5mV |
| Current | ≤0.1%+5mA |
| Power regulation rate | ○ |
| Voltage | ≤0.01%+2.5mV |
| Current | ≤0.1%+2.5mA |
| Set value resolution | ○ |
| Voltage | 1mV |
| Current | 1mA |
| Read back value resolution | ○ |
| Voltage | 1mV |
| Current | 1mA |
| Set value accuracy | ○ |
| Voltage | ≤0.01%+10mV |
| Current | ≤0.1%+10mA |
| Read back value accuracy | ○ |
| Voltage | ≤0.01%+20mV |
| Current | ≤0.1%+20mA |
| Ripple | ○ |
| Voltage | ≤50mVp-p |
| Current | ≤15mArms |
| Empty load | ○ |
| Empty load | ≤300mS |
| Full load | ≤1S |
| Descent time | ○ |
| Empty load | ≤500mS |
| Full load | ≤300mS |
| Programming language | SCPI & Modbus (RTU) |

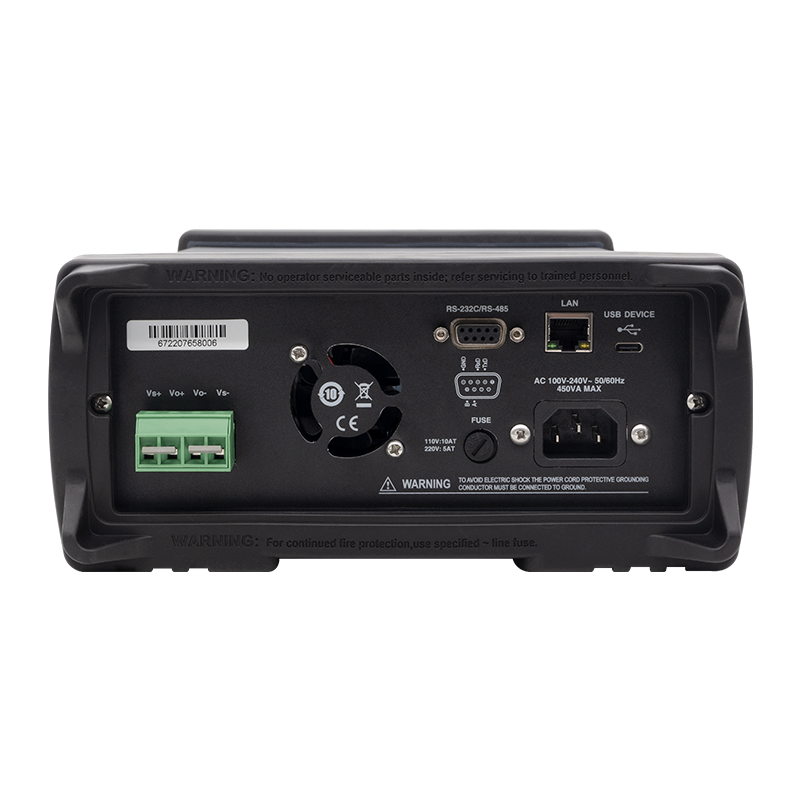

| Interface | RS232/RS485/LAN/TYPE-C |
| Other | 5-inch TFT-LCD true color display, touch screen |
| Accessories | ATL509 test cable; power line |
| Other Accessories | ATL108 RS232 communication cable; |
| Size | External dimensions (mm): 263 (width) x107 (height) x384 (depth) |
| Weight | 6kg |
