OVERVIEW

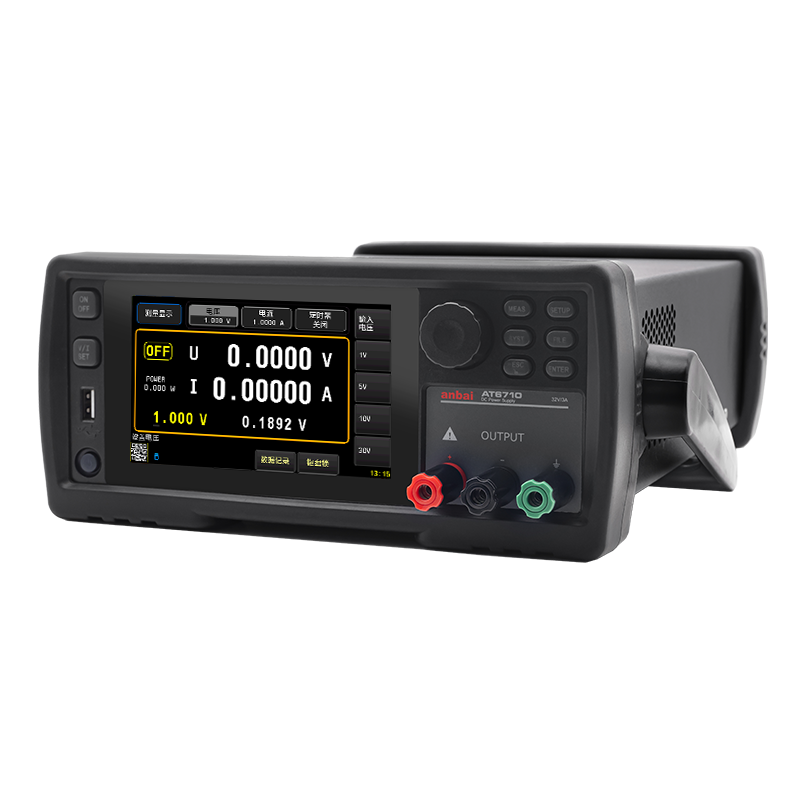

    The AT6710 programmable DC power supply has a fast voltage rise speed and high accuracy and resolution; This power supply has remote compensation function, which can compensate for the voltage drop from the power supply to the tested object line; The panel supports LIST programming and also has functions of voltmeter and ohmmeter.
FEATURES
  • ● High precision, high resolution
  • ● Output linear regulation, high-speed and reliable, low noise
  • ● Provide List mode to edit the output waveform of voltage and current changes over time
SPECIFICATIONS
Output Voltage Range
Voltage0~32V
Electric current0~3A
Power96W
Load regulation rate
Voltage≤0.01%+2mV
Current≤0.05%+0.1mA
Power regulation rate
Voltage≤0.01%+1mV
Current≤0.05%+1mA
Set value resolution
Voltage1mV
Current0.1mA
Read back value resolution
Voltage0.1mV
Current0.01mA
Set value accuracy
Voltage≤±0.03%+3mV
Current≤±0.05%+2mA
Read back value accuracy
Voltage≤±0.02%+3mV
Current≤ ±0.05%+2mA
Ripple
Voltage≤3mV Vpp
Current≤3mA rms
Empty load
Empty load≤20mS
Full load≤20mS
Descent time
Empty load≤150mS
Full load≤150mS
Programming languageSCPI & Modbus (RTU)

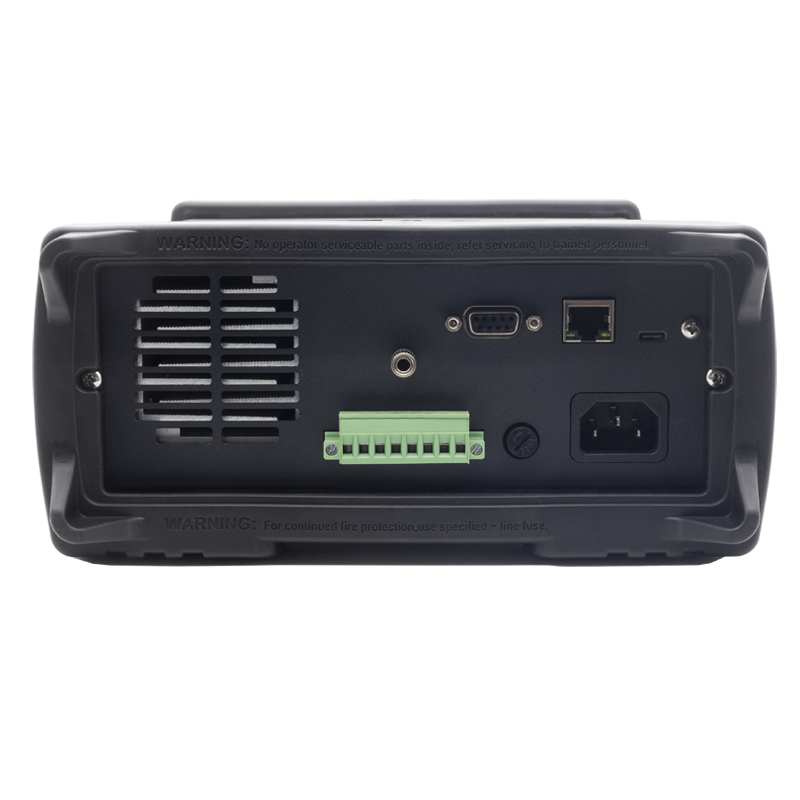

InterfaceRS232/RS485/LAN/TYPE-C

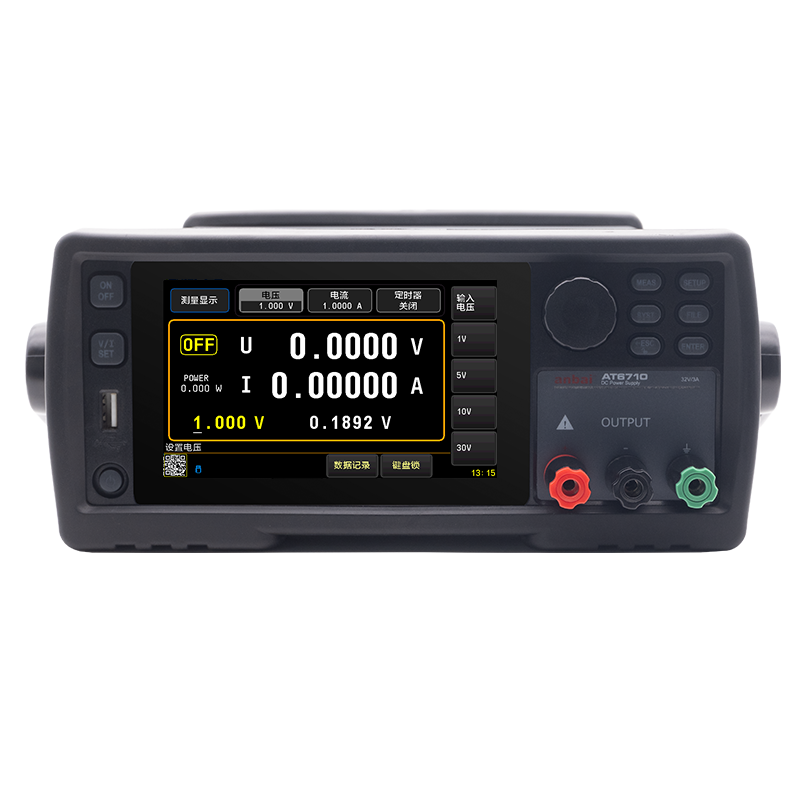

Other5-inch TFT-LCD true color display, touch screen
AccessoriesATL509 test cable; power line
Other AccessoriesATL108 RS232 communication cable;
SizeExternal dimensions (mm): 263 (width) x107 (height) x394 (depth)
Weight10kg
