OVERVIEW

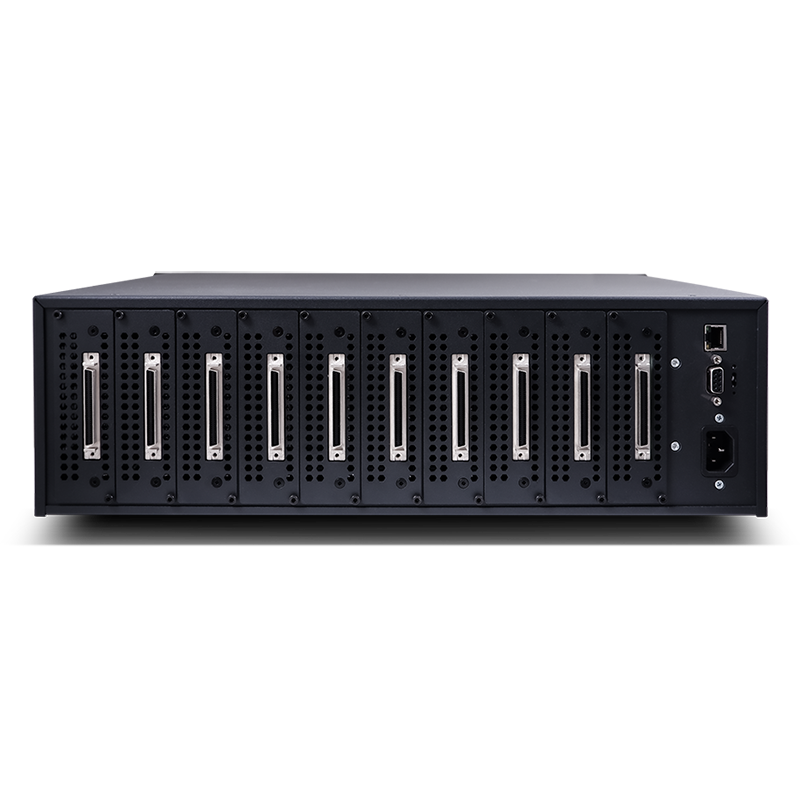

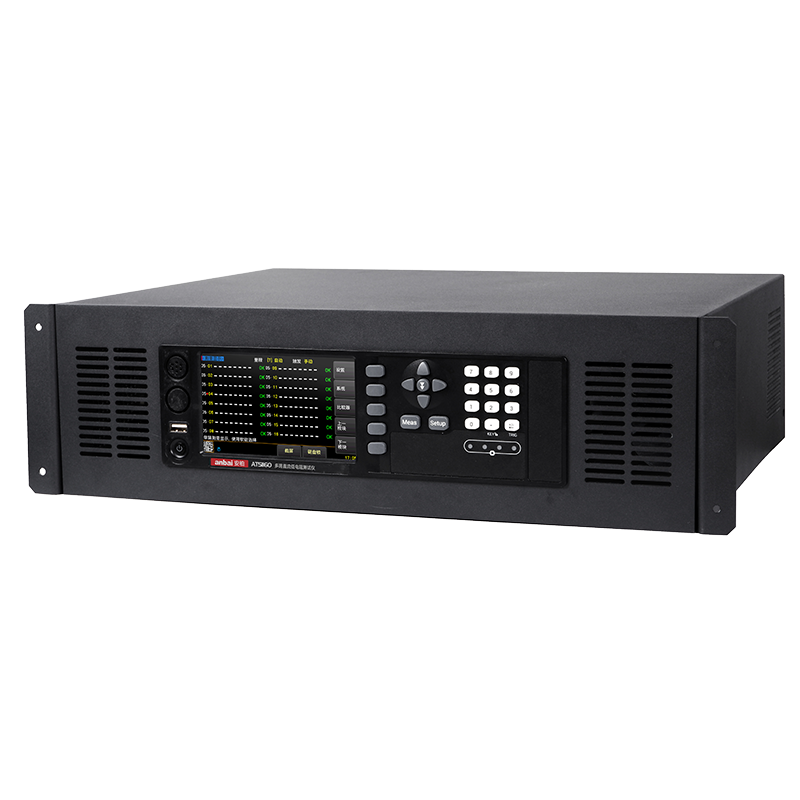

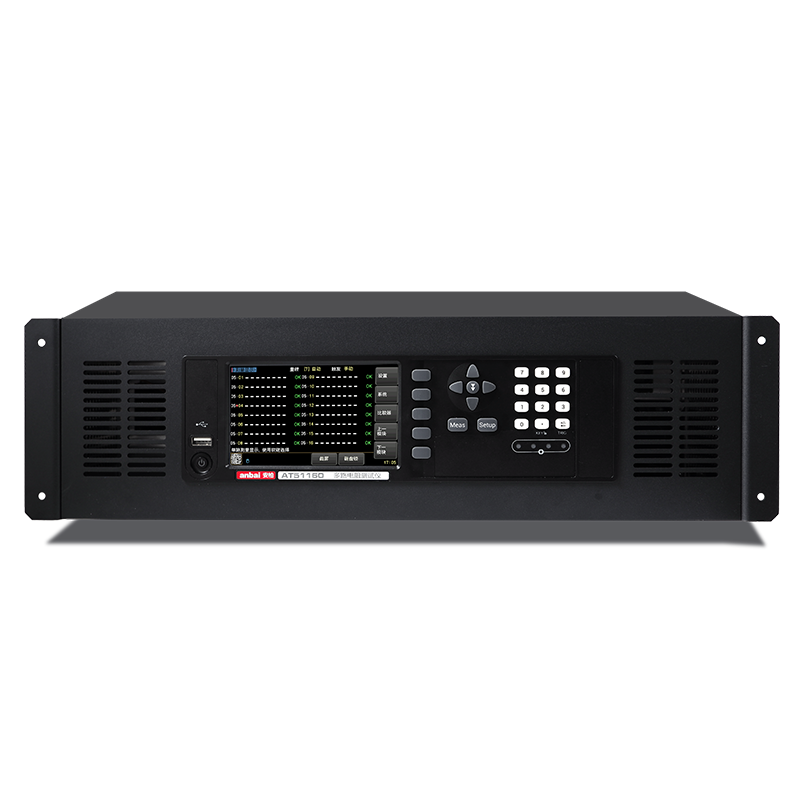

AT51160 is an efficient and accurate 160 channel resistance testing device designed specifically for batch testing. It supports parallel scanning of 10 modules, completes all channel tests in as fast as 1.1 seconds, covers a range of 1μΩ~200kΩ, and has an accuracy of 0.05%. The built-in intelligent comparator can automatically sort qualified products (OK/LO/HI), with independent comparator settings for each channel and equipped with contact defect detection. Supports RS-232/485, LAN remote control, and USB data storage, compatible with SCPI and Modbus protocols, making it easy to integrate into automated production lines. Whether it is electronic component quality inspection, PCB testing, or industrial production line integration, AT51160 can provide fast and reliable solutions, with safe and easy operation, meeting the needs of multiple scenarios with one machine.

FEATURES

Supports mixed testing of devices with different resistance values.
Module quantity is configurable according to application needs.
Intelligent Sorting & Contact Verification
5-inch True Color TFT-LCD Display
‌Configurable Resistance Upper/Lower Limits‌
‌Keyboard Lock‌

SPECIFICATIONS

Channel	160 Channels(Customizable increment per 16 channels, AT5116, AT5132, AT5148, AT5164, AT5180, AT5196, AT51112, AT51128, AT51144, AT51160)
Parameter	DC RESISTANCE
Accuracy	0.05%
Measurement Range	1μΩ~200kΩ
Signal Source	1uA~1A
Range	Automatic Manual‌ &Nominal
Speed	3.5S/160 channels , 1.9s/160 channels, 1.1s/160 channels
Result Display	direct display
Max Reading	22,000
Adjustment	short-circuit reset full range
Comparator	Trigger‌
Trigger	‌Internal Trigger&External Trigger
Interface	RS-232C /485（SCPI order set） MODBUS ;LAN interface
Temperature	/
Method	‌Four-terminal Measurement‌
Cantact Checking	/
Other Functions	5-inch Full-Color TFT-LCD Display,‌Capacitive Touchscreen‌,‌Keyboard Lock‌
Power Supply	‌Voltage‌:198VAC~240VAC Frequency:50Hz Power‌ :20VA
Dimension & Weight	485 x 129x 371mm Weight：14kg
Accessories	‌Equip with test leads according to the actual channel count‌
