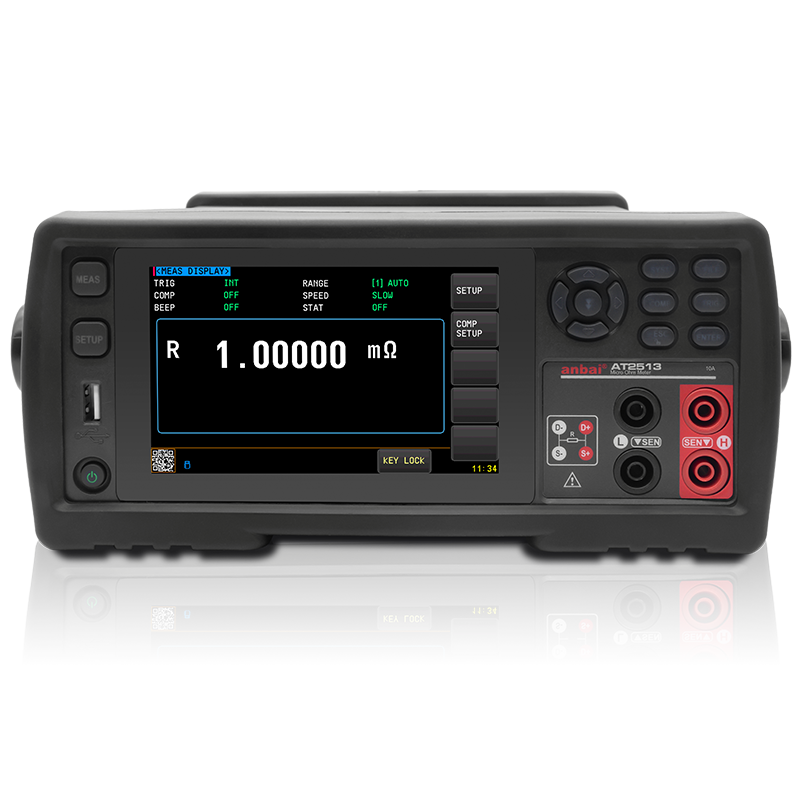

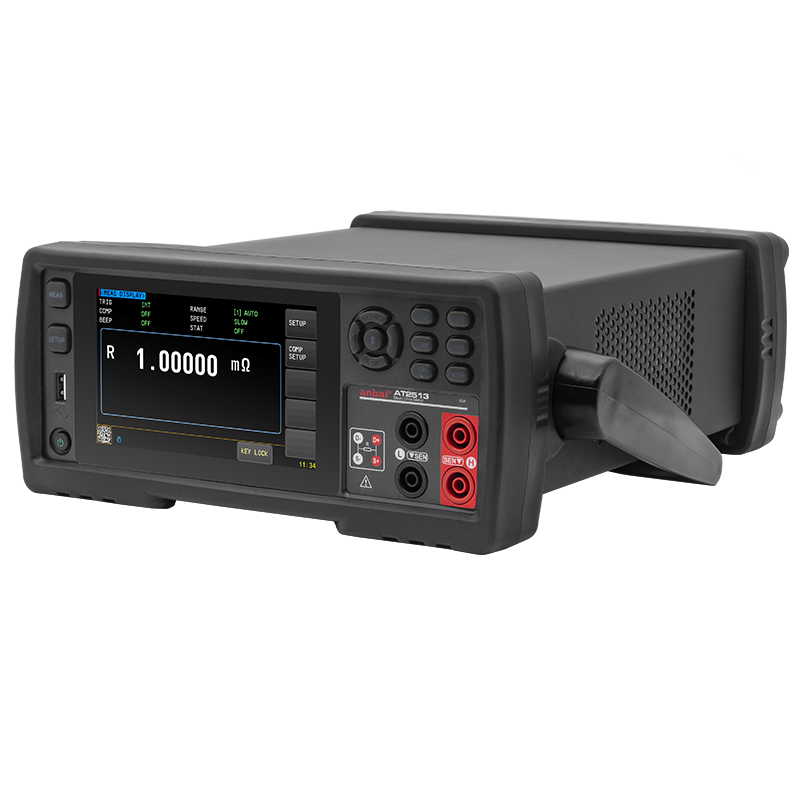

AT2513 Micro ohm Meter
ACTIVE
Send Email to us
RS232RS485USB-232LAN
SCPI
DATA LOGGERUSB-DISK
OVERVIEW
    AT2513 is a high-precision tester developed for ultra-low DC resistance, with a test current of 10A and a measurement range of 0.01u Ω~3000000 Ω; Display 300000 numbers; The testing accuracy is 0.02%; Automatic bidirectional current testing, pulse based testing method avoids the impact of heat generated by the testing circuit on testing accuracy, and comes standard with temperature compensation energy to eliminate the influence of environmental temperature on test results. AT2513 is suitable for testing cables, materials, splitters, riveting resistors, etc.

    AT2513 provides multiple interface functions and has professional sorting capabilities, which can be applied to automatic sorting systems to complete fully automatic assembly line testing; And it can be equipped with RS232/RS485/LAN/USB communication interface/USB interface, which can facilitate data communication and remote control with PC.
FEATURES
  • Temperature compensation function.
  • Current mode - pulse or forward/reverse measurement (maximum current: ≈10A)
  • Compatible with SCPI instruction set.
  • Superior repeated measurement accuracy
  • Keyboard lock function.
  • Data retention function.
  • Comparator function and data output function
SPECIFICATIONS
ParameterDC Resistance
Accuracy0.02% ±3byte
Measurement Range0.00001mΩ~300.000Ω
Measurement currentMaximum current:< 10A, current mode: pulse current, forward and reverse current
RangeSix range manual and automatic
SpeedFast 10 times/second, slow 1 time/second
DisplayDirect reading/Δ ABS/Δ% and sorting results
Display Max300000
AdjustmentClear open circuit and short circuit
ComparatorUpper limit/lower limit/disable comparator
TriggerInternal trigger, manual trigger, external trigger

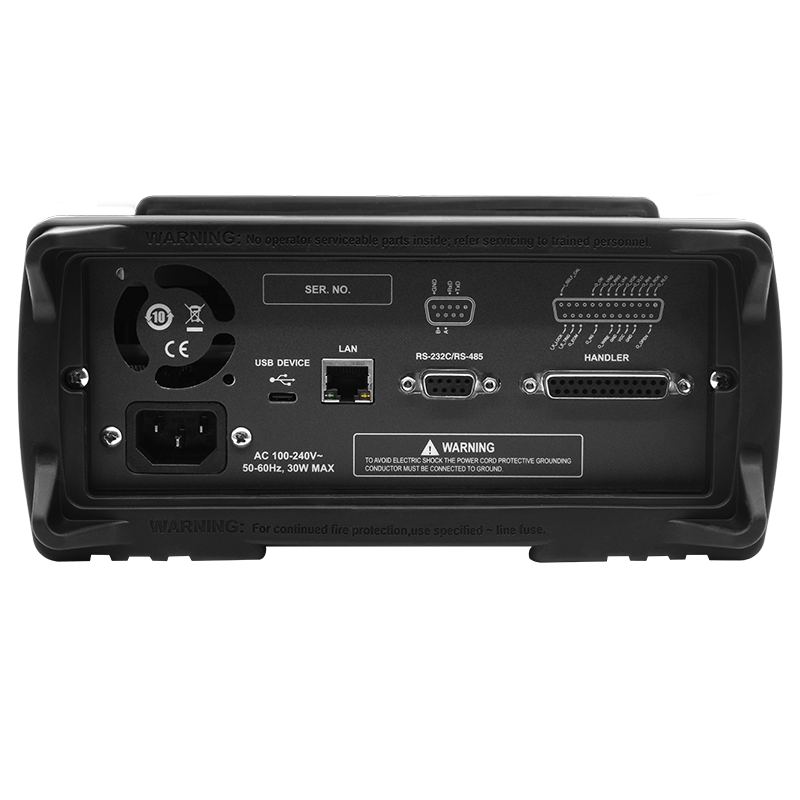

InterfaceRS232/RS485/LAN/USB communication interface/USB interface
Temperature compensationAccuracy: 0.2 ° C/Temperature measurement range: 0-80 ° C
MethodFour terminal testing
Power SupplyPower Requirements Voltage: 90-250VAC Frequency: 50/60Hz Power: 15VA
Dimension & Weight64 x 107 x 350mm 2.5kg
AccessoriesATL2513 Kelvin clamp test line; ATL18B20 temperature probe; ATL108 RS232 communication cable;
Optional AccessoriesATL620 meter resistor four terminal fixture
Other Functions5-inch touch screen; Keyboard lock and data retention function
APPLICATIONS
