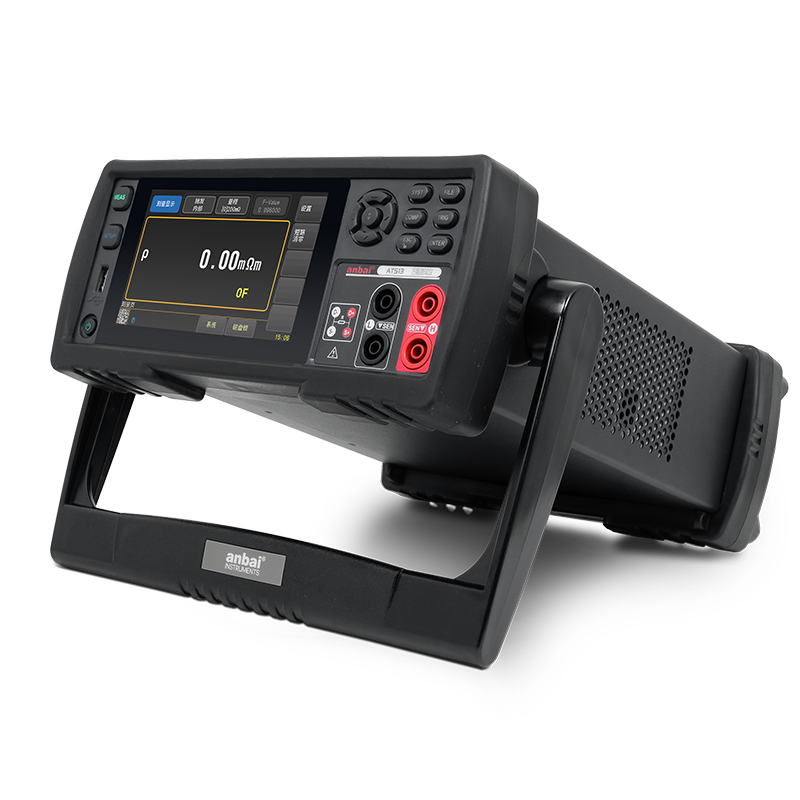

AT51306 Sheet Resistivity Meter

ACTIVE

Send Email to us

RS232RS485LANHANDLER

SCPIMODBUS

OVERVIEW

FEATURES

The AT513 Four-Probe Method‌ significantly enhances measurement accuracy by separating current and voltage measurements, thereby eliminating the influence of contact resistance. This technique also reduces background signal interference, particularly when measuring low-resistivity materials where background effects are substantially suppressed.
Requiring only light surface contact with samples, the method causes no physical damage and is suitable for testing various sensitive materials.
Applicable to diverse materials including metals, semiconductors, insulators, and composites, the four-probe method provides accurate resistivity measurements for thin-film materials unaffected by sample thickness.

SPECIFICATIONS

Parameter	Sheet resistance testing‌
Channels	6 Channels
Accuracy	2%
Measurement Range	200mΩ~200kΩ
Range	7 ranges manual
Speed	/
Display Max	900kΩm
Trigger	Internal, external trigger

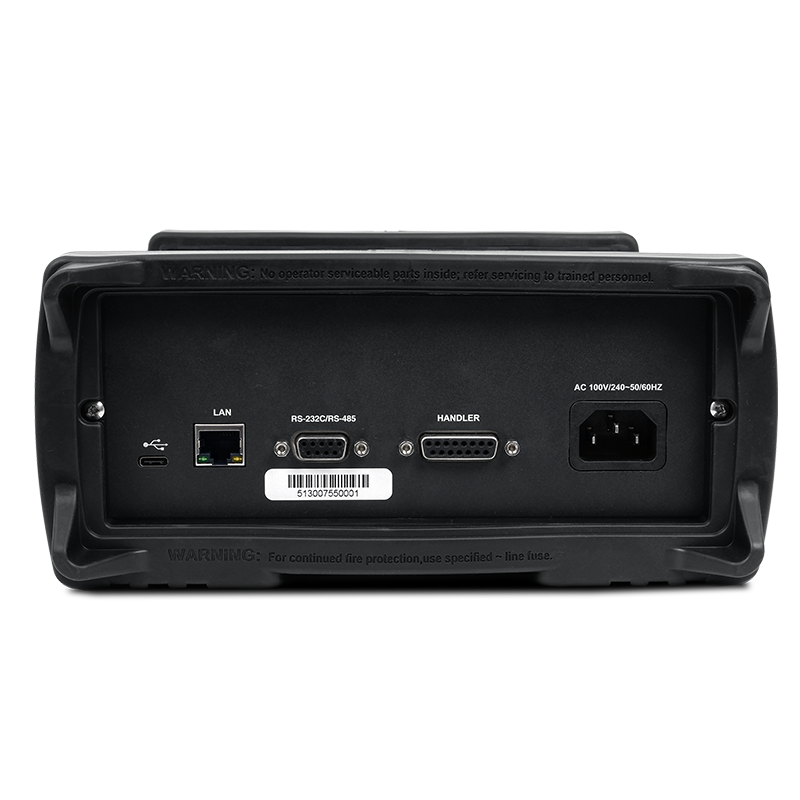

Interface	Handler ,RS232,LAN,RS485,Type-C
Other Functions	5-inch Full-Color TFT-LCD Display,‌Capacitive Touchscreen‌,‌Keyboard Lock‌
Accessories	‌Four-Point Probe‌
Optional Accessories	/
Dimension & Weight	264x105x350mm Weight：3.5kg
Power Supply	‌Voltage‌:100VAC~240VAC Frequency:50Hz/60Hz
