| Parameters | Cell Short Circuit Test |
| Voltage output range | 50V ~2000VDC（Programmable Voltage Source） |
| Accuracy | ±(1%× Set Value +2V) |
| Testing Time | 10ms~1000ms
Accuracy ：±(2%× Set Value +2ms) |
| cell capacity | 20nF-600nF |
| Number of stored groups | 100 Groups |
| Evaluation parameter | Charging Time
Holdover Voltage
Drop-off Voltage |
| Determination method | △ T/ △ V |
| Judgment result | OK/NG |

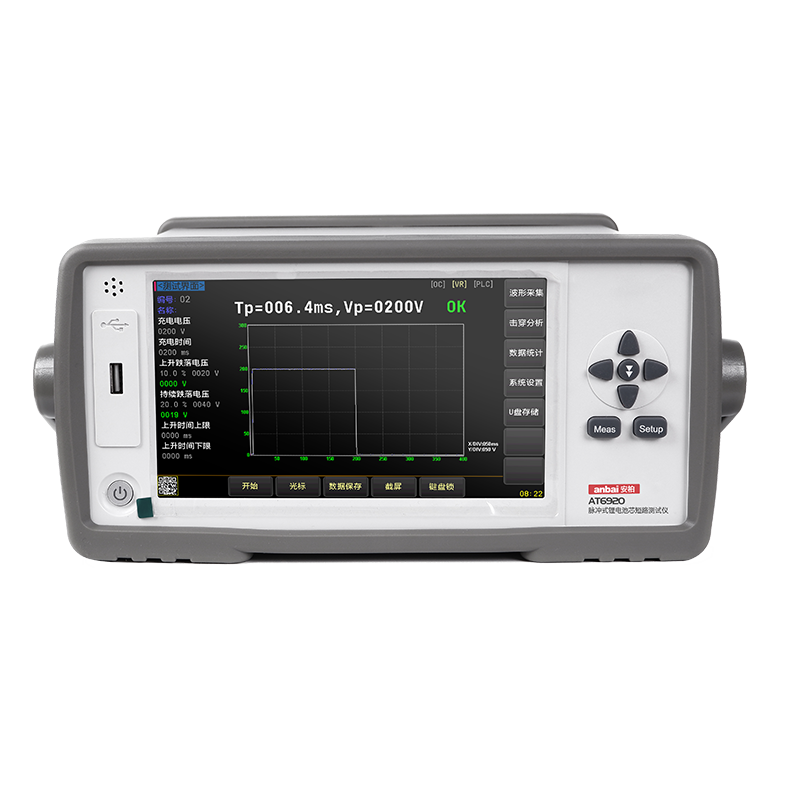

| Display | Dual-Waveform Comparative Display (Test Waveform vs Reference Waveform) |

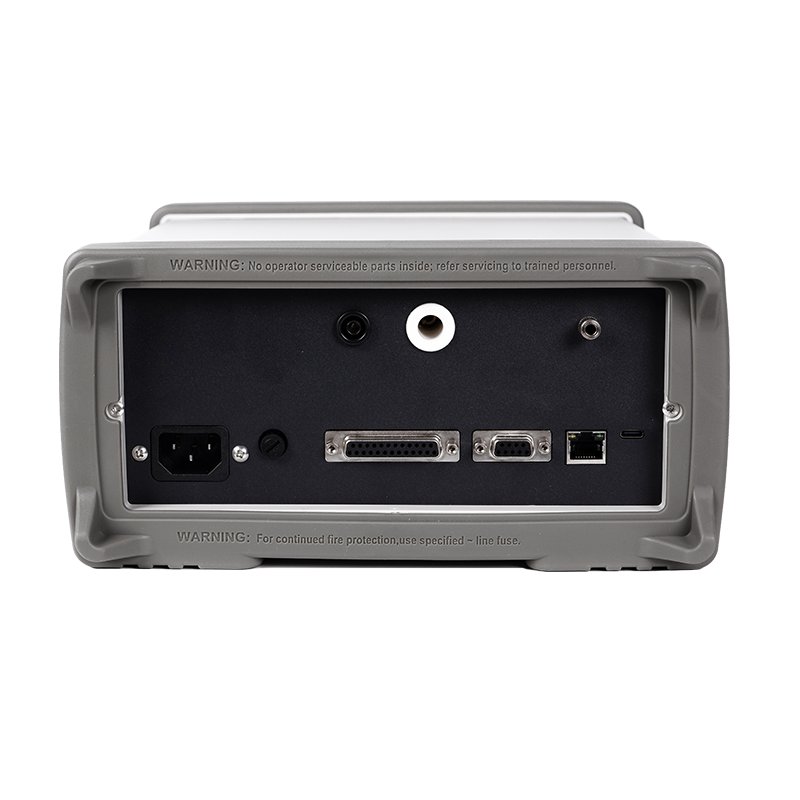

| Interface | RS-232C ；RS-485 ；USB ；LAN；Handler |
| Other functions | 7-inch TFT-LCD Display；USB Flash Drive Data Logging；Keypad Lock & Data Retention Function Internal Flash Memory |
| Accessories | Test Lead；ATL108 RS232 Communication Cable |
| Dimensions | 294 x130x316 mm |
| Mass | 4kg |
| Options | / |
| Power | V: 220VAC Fre：50Hz power：20VA |
