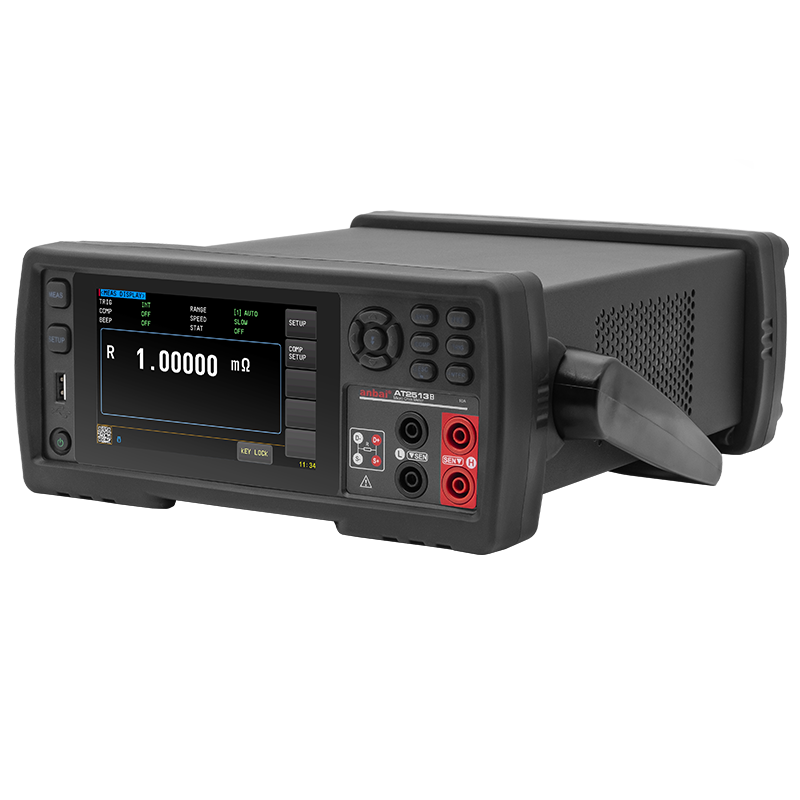

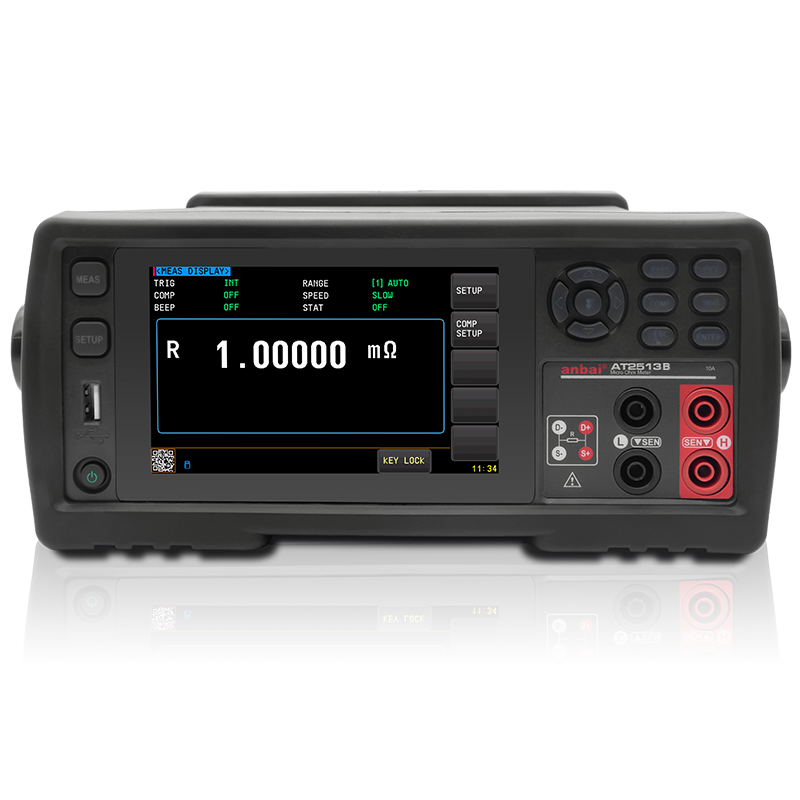

AT2513B Micro ohm Meter
ACTIVE
Send Email to us
RS232RS485LAN
SCPI
DATA LOGGERUSB-DISK
OVERVIEW
    AT2513B is a high-precision tester developed for ultra-low DC resistance, with a test current of 10A and a measurement range of 0.1u Ω~3000.00 Ω; Display 300000 numbers; The testing accuracy is 0.02%; Automatic bidirectional current testing, pulse based testing method avoids the impact of heat generated by the testing circuit on testing accuracy, and comes standard with temperature compensation energy to eliminate the influence of environmental temperature on test results. AT2513 is suitable for testing cables, materials, splitters, riveting resistors, etc.

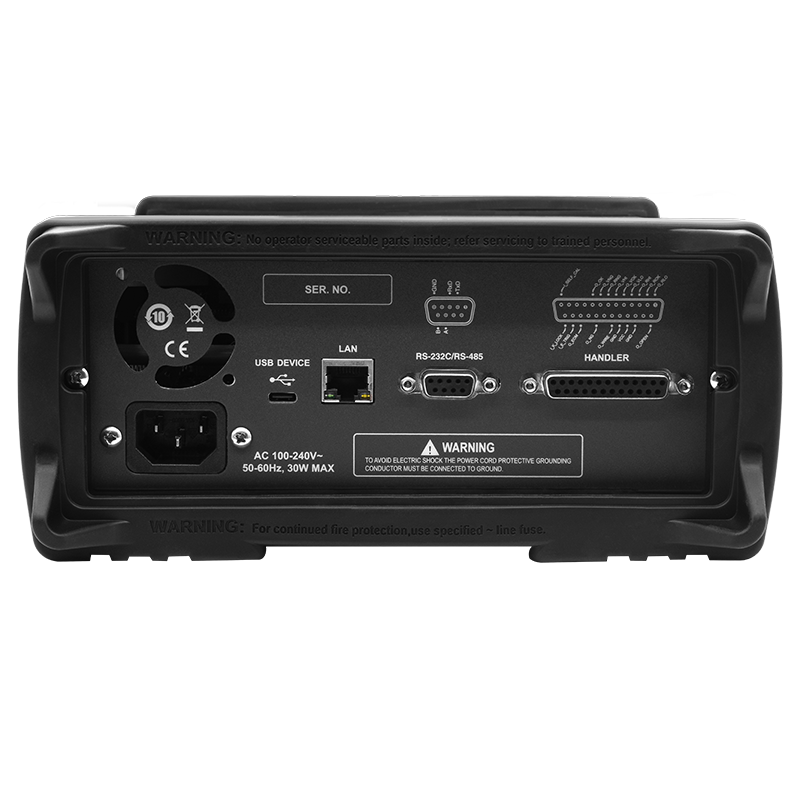

    AT2513B provides multiple interface functions and has professional sorting capabilities, which can be applied to automatic sorting systems to complete fully automatic assembly line testing; And it can be equipped with RS232/RS485/LAN/USB communication interface/USB interface, which can facilitate data communication and remote control with PC.
FEATURES
  • Temperature compensation function.
  • Current mode - pulse or forward/reverse measurement (maximum current: ≈10A adjustable)
  • Compatible with SCPI instruction set.
  • Superior repeated measurement accuracy
  • Keyboard lock function.
  • Data retention function.
  • Comparator function and data output function
SPECIFICATIONS
ParameterDCR
Accuracy0.02% ±3byte
Measurement Range0.0001mΩ~3000.00Ω
Measurement currentMaximum current:< 10A, current mode: pulse current, forward and reverse current (adjustable from 1 to 10A in a range of 30m Ω test current)
RangeSix range manual and automatic
SpeedFast 10 times/second, slow 1 time/second
DisplayDirect reading/Δ ABS/Δ% and sorting results
Display Max300000
AdjustmentClear open circuit and short circuit
APPLICATIONS
    Suitable for testing cables, materials, splitters, riveting resistors, etc
DOCUMENTATION
DOCUMENTS
DATASHEET ENGLISH

|

CHINESE
USER'S GUIDE CHINESE
ACCESSORIES
STANDARDS

ATL108

ATL108

RS232通讯电缆

ATL18B20

ATL18B20

温度补偿

ATL527

ATL527

AT527 kelvin test clip

OPTIONS

ATL620

ATL620

SOFTWARE
NONE
