AT686A Insulation Resistance Meter
ACTIVE
Send Email to us
RS232HANDLER
RS485OPTIONS
OVERVIEW

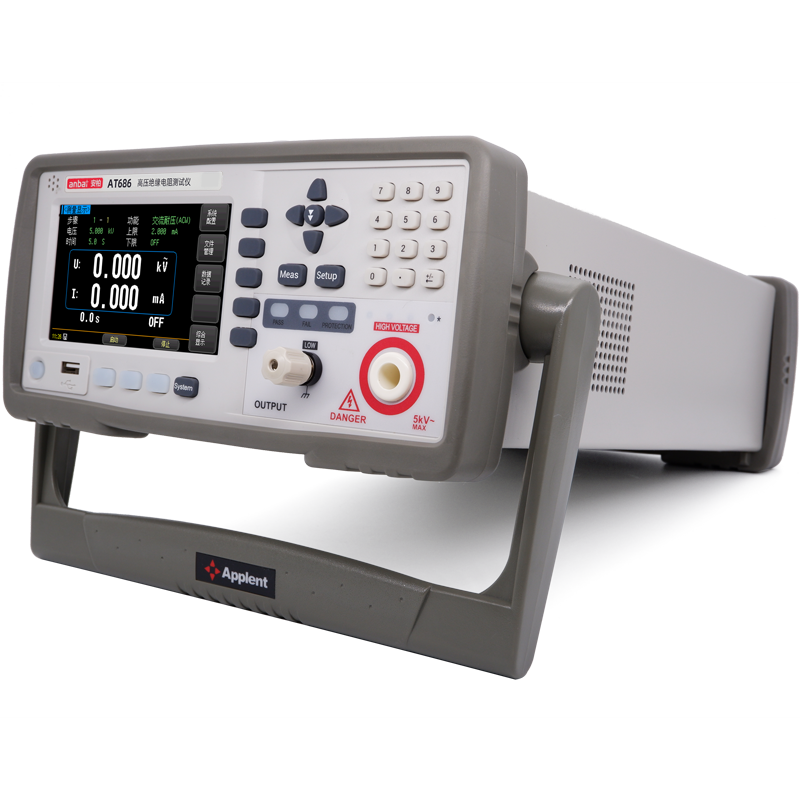

    AT686A high voltage insulation resistance tester is an intelligent test instrument controlled by a high-performance ARM microprocessor. Color LCD display, poneer 50V~5000V arbitrary voltage output), can meet any critical requirements. Make the insulation resistance measurement range up to: (200k-1TΩ(105~1012Ω)), display 20,000 digits. The test speed can reach 100 times per second, and the ultra-high-speed test provides an optimal solution for automated production.

    The timer can be set to count and count down.

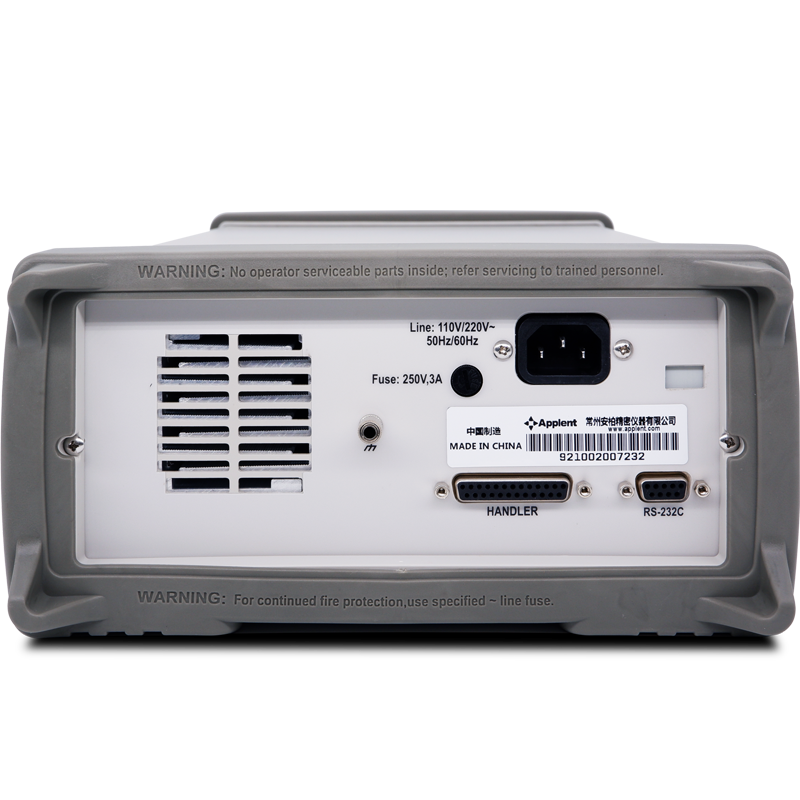

    The instrument has a sorting function, sorting alarm setting, equipped with a Handler interface, which is used in an automatic sorting system to complete automatic assembly line testing. also equipped with RS232C interface for remote control and data acquisition and analysis. The standard USB interface can easily upgrade the instrument.

    Computer remote control instructions are compatible with SCPI (Standard Command for Programmable Instrument), which can efficiently complete remote control and data acquisition functions.
FEATURES
  • Comparator (sorting) function: build in 30 sets records, GD/NG judge to measured parts. Compatible with SCPI programming specifications
SPECIFICATIONS
ParametersHigh voltage insulation resistance
Output VoltageDigital Controll 50V~5000VDC
Accuracy<10G: 3% ≥10G: 5% ≥100Ｇ: 10%
Measurement Range100k-100GΩ
Display Max20000
RangeAuto & Manual
Speed100 times/s, 55 times/s,3 times/s,
Adjustmentopen -circuit collection full range
Result Displayshow, current, resistance,Peak and sorting results
Charging Timer999.9s
ComparatorGD/NG beep:GD,NG, off setting
InterfaceHANDLER (PLC) ,RS-232 Interface
Power Supply198VAC～240VAC Frequency：50Hz Power MAX：30VA
Dimension & Weight270mmx130mmx450mm / 8kg
Other FunctionsLCD display, timer can be set to count and count down
APPLICATIONS
    Used for field test or timed test and destructive test.
    Test the insulation resistance and leakage current of switchgear, relays, motors, generators and cables.
    Photovoltaic module wet insulation test
    Insulation resistance measurement of electronic components and equipment.
    Dielectric materials and insulation resistance measurement of wires and cables, etc.
