AT9220A Hipot Tester
ACTIVE
Send Email to us
RS232HANDLER
RS485OPTIONS
SCPI
USB-DISK
OVERVIEW

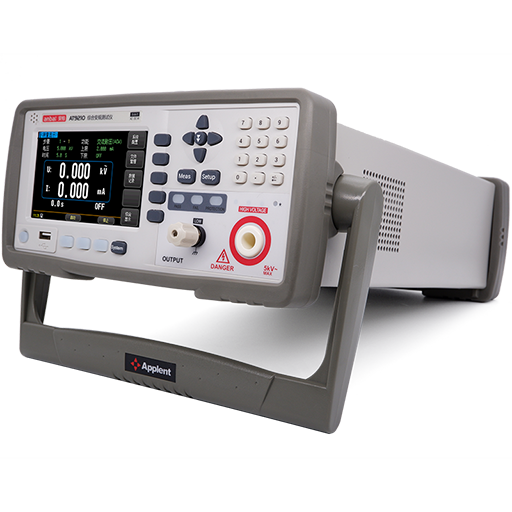

    AT9220/10 AC/DC hipot tester adopts 5 inches TFT true color LCD display ( touch screen) and with high performance 32 bits processor. It is small sizes, light weight 8kg ,super cost-effective, easy to operate. The high-voltage module of the instrument uses a DA as base, a controllable sine generator, a class AB power amplifier, 40-600Hz high-voltage transformer for boosting, and the output voltage is closed-loop controlled.

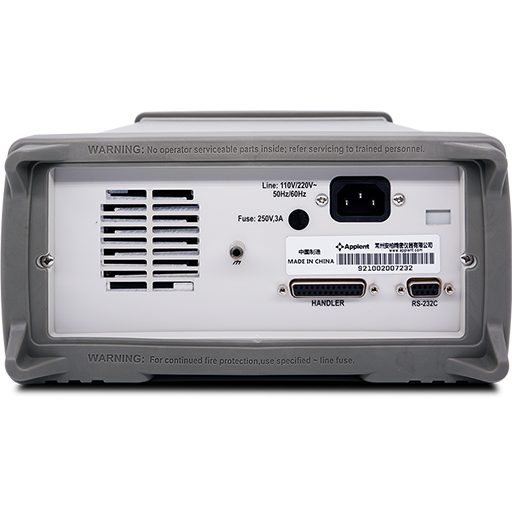

    AT9220 series equiped with Handler (PLC), The RS232C interface can easily carry out data communication and remote control with the PC, which can meet the requirements of automated testing and improve production efficiency.
FEATURES
  • AC：0.050kV-5.000KV
  • DC: 0.050kV-6.000kV
  • Touch screen +Button control
  • Large screen display
  • Chinese and English operation interface
  • Standard RS232, Handler interface
SPECIFICATIONS
APPLICATIONS
    It is widely used in the safety performance inspection of household appliances, transformers, electrical equipment and components.
DOCUMENTATION
DOCUMENTS
DATASHEET ENGLISH

|

CHINESE
USER'S GUIDE ENGLISH

|

CHINESE
ACCESSORIES
STANDARDS

ATL108

ATL108

RS232通讯电缆

ATL900E

ATL900E

高压测试线

ATL900E1

ATL900E1

高压表棒

OPTIONS
NONE
SOFTWARE
Applent Communication Assist
Rev.4.23

CHINESE

Application

FREEWARE

2.4MB

RAR
AT92 Series Hipot Tester
Rev.A1.0

Application

FREEWARE

3.7MB

MSI
