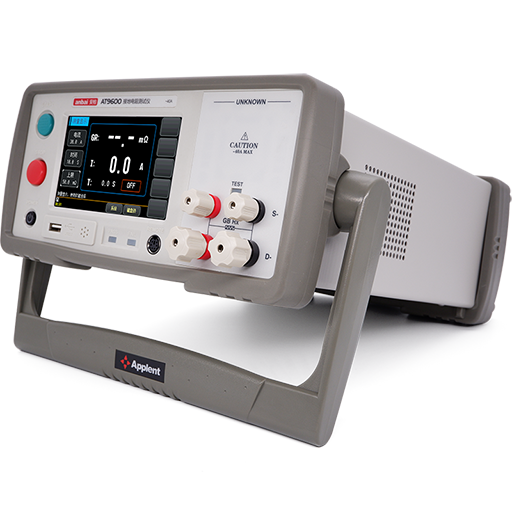

AT9600 Ground Resistance Meter
ACTIVE
Send Email to us
RS232
SCPI
DATA LOGGERUSB-DISK
OVERVIEW
    AT9600 AC ground resistance tester is an instrument used to measure the internal ground impedance of electrical equipment or between the electrical equipment and the grounded power grid.

    It can output 40A AC current.

    This instrument is designed in accordance with international and domestic safety standards such as GB4706.1-2005 and IEC60335-1:2004, and JJG-984-2004 is used as the metrological verification standard.
FEATURES
  • 5 inch TFT color screen
  • Ground impedance
  • Synchronous display of output current test time
  • Upper limit alarm, over upper limit buzzer alarm
SPECIFICATIONS
APPLICATIONS
    Measurement of protective earthing resistance of equipment
    Evaluation of large current flow
    Ground connection inspection of electrical work equipment and power distribution cabinets
    Protective earthing of medical equipment
    Inspection of equipotential grounding works
DOCUMENTATION
DOCUMENTS
DATASHEET ENGLISH

|

CHINESE
USER'S GUIDE CHINESE
ACCESSORIES
STANDARDS

ATL108

ATL108

RS232通讯电缆

ATL900A

ATL900A

ATL900A

OPTIONS
NONE
SOFTWARE
NONE
