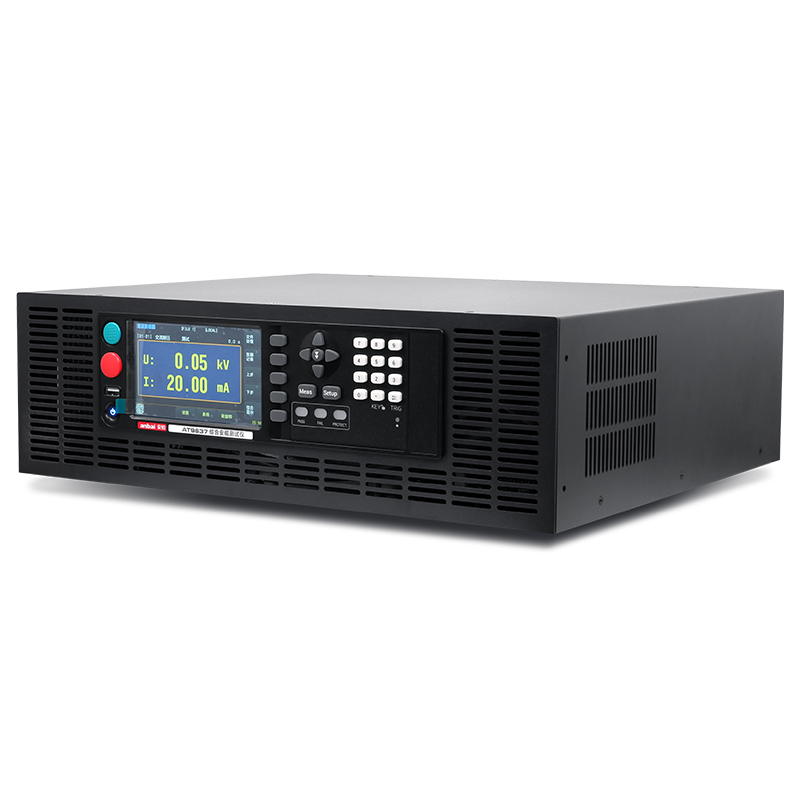

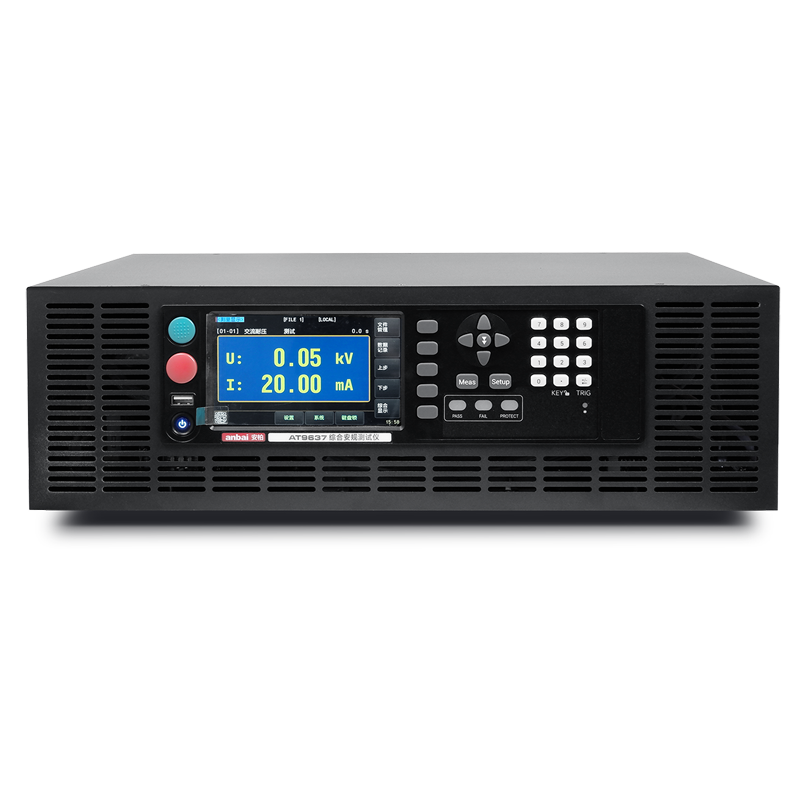

AT9637 Hipot Tester

ACTIVE

DATASHEET(CHINESE)

RS232RS485LAN

SCPIMODBUS

DATA LOGGERUSB-DISK

OVERVIEW

FEATURES

1.Integrated functions: AC/DC withstand voltage test, insulation resistance test, and arc detection；
2.Discharge lower limit detection technology and DC open-circuit detection technology ；
3.DC rapid discharge technology, completing discharge within 0.1s ；
4.Capable of storing and editing 10 test groups, with 16 steps per group ；
5.Data logging function: Built-in real-time clock and supports USB storage ；
6.Flexible test control:2 options for handling failed steps；2 modes for displaying test results；(Adaptable to diverse requirements) 。
7.Supports multiple communication interfaces: RS232/RS485, etc.

SPECIFICATIONS

Measurement Functions	AC/DC Withstanding Voltage & IR

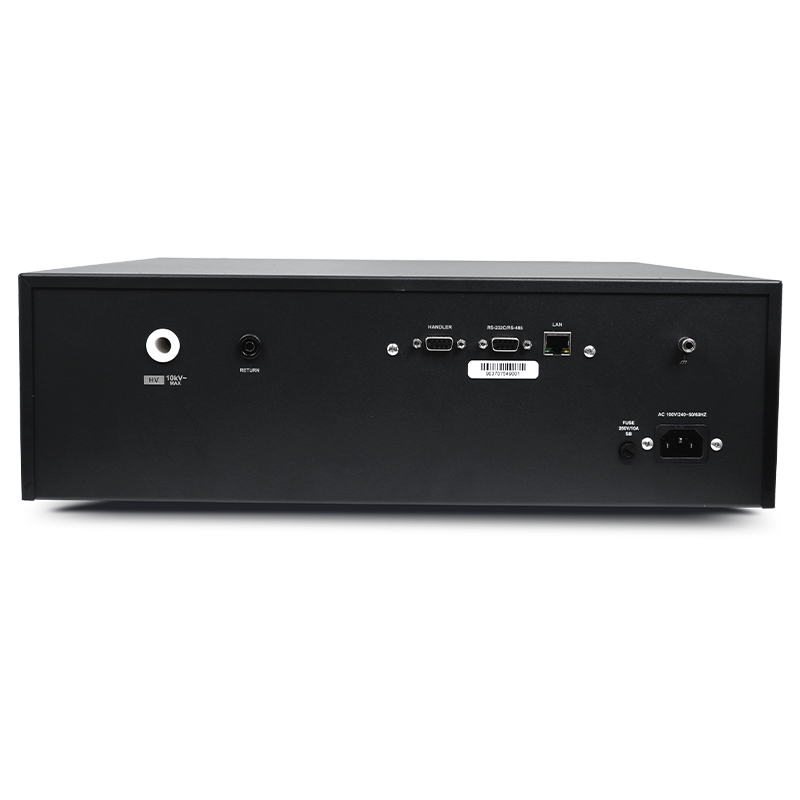

Interface	RS232/Handler/USB
Arc Detection	9 Levels (AC/DC)
Other Functions	LIST Edit Discharge Function 5“ LCD + Touch panel
AC Withstand Voltage	●
Rate Ouput	AC 10.000kV/20mA
Output Voltage	0.05kV-10.000KV AC Resolution: 10V
Voltage Accuracy	2% of reading + 5 digits
Output Regulation	2% of reading +5V
Output Frequency	50Hz/60Hz
Measurement Current	0.001mA-20.00mA Resolution: 0.001 / 0.01
Current Accuracy	2% of reading + 5 digits
Rising Time	0.4s-999.9s
Testing Time	0.5s-999.9s
Falling Time	0.1s-999.9s
DC Withstand Voltage	●
Rate Output	DC 12kV/10mA
Output Voltage	0.05kV-12.000KV DC Resolution: 10V
Voltage Accuracy	2% of reading + 5 digits
Output Regulation	2% of reading +5V
Current Measurement	0.1μA-10.000mA
Current Accuracy	2% of reading +5 digits
Rising Time	0.4s-999.9s
Testing Time	0.5s-999.9s
Falling Time	0.1s-999.9s
Insulation Resistance	●
Rate Output	2500Vdc/50GΩ
Output Voltage	0.05kV-2.500kV DC Resolution： 1V
Voltage Accuracy	‌2% of the set value + 5 V
Power Supply	110VAC~220VAC 47Hz~63Hz 300VA
Dimension & Weight	479mm( W )x133mm( H )x391mm ( D ) 15kg
Accessories	ATL900E Withstand voltage test line ATL108 RS232 Communication DB9-handler
