AT680A Leakage Current Meter
ACTIVE
Send Email to us
RS232HANDLER
SCPI
DATA LOGGER
OVERVIEW
    AT680A is a supercapacitor leakage current tester controlled by a high-performance microprocessor. Numerical control test voltage: 1.000V~10.000V, charging current 2A, 4-range test, so that the leakage current accuracy is increased to 1%, it can test the current of 0.001μA~200mA, and the number of displayed digits is 9999. The test speed can reach 55 times per second, and the 1999 reading and 5% accuracy are still guaranteed. Ultra-high-speed testing provides an ideal solution for automated production.

    The instrument has a sorting function, a sorting sound setting, and can also be equipped with a Handler interface, which is used in an automatic sorting system to complete a fully automatic assembly line test.

    Through the built-in RS232C interface, it can be used for remote control and data acquisition and analysis.

    The computer remote control command is compatible with SCPI (Standard Command for Programmable Instrument Standard Command Set), which can efficiently complete the remote control and data acquisition functions.
FEATURES

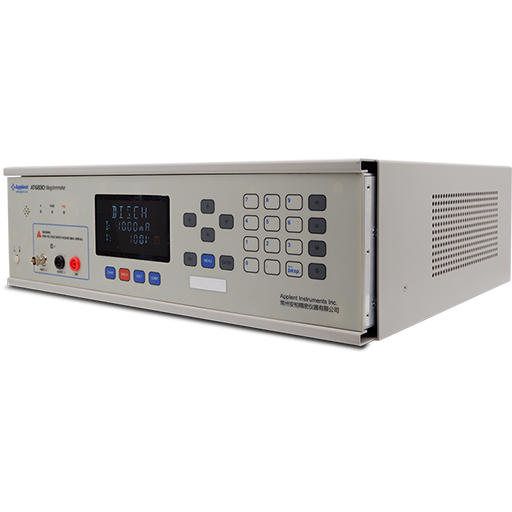

  • High brightness, ultra-clear four-color VFD display, multiple parameters are displayed at the same time.
  • The charging test is automatically switched.
  • Peak hold function.
  • Full range open circuit clear function.
  • Comparator output: the sorting result can be output through RS232C or optional Handler interface.
  • Adjustable sound and display: Users can set the GD/NG sound and trigger mode according to their needs: internal trigger, manual trigger, external trigger and remote trigger.
  • Adjust the display brightness.
  • Optional foot switch.
SPECIFICATIONS
ParametersLeakage current
Accuracy1%
Output VoltageNC 0.001V~10.000VDC
Measurement Range1μA~200mA
Max Reading9999
RangeAutomatic & Manual, 4 ranges
Charging Current2A（MAX）±200ma
Speed55 times/s, 15 times/s, 3 times/s
Result Displayshow
open-circuit reset
Charging Timer999.9s
Comparatorbuild-in comparator
BeepGD,NG, OFF set

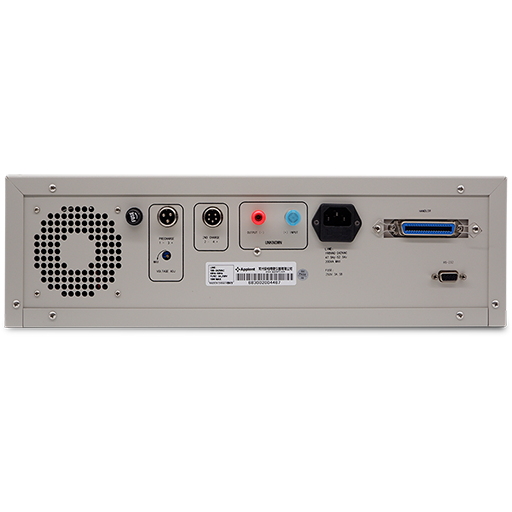

InterfaceRS-232, Handler interface
Power SupplyVoltage:198VAC～240VAC Fre：47.5~52.5Hz Power :max 50VA
Dimension & Weight445*129*351mm / 8kg
APPLICATIONS
    Super capacitor
DOCUMENTATION
DOCUMENTS
DATASHEET ENGLISH

|

CHINESE
USER'S GUIDE CHINESE
ACCESSORIES
STANDARDS

ATL108

ATL108

RS232通讯电缆

ATL507

ATL507

ATL603

ATL603

OPTIONS
NONE
SOFTWARE
NONE
