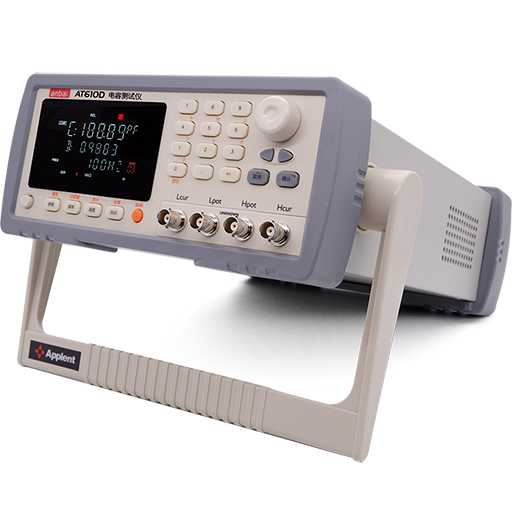

AT610D Capacitance Meter
ACTIVE
Sorting machine Version Send Email to us
RS232
SCPI
OVERVIEW
    New 6th edition in 2021, AT610D redesigned with new technology, better stability, new key design, easier operation.

    AT610D adopts a high-energy processor and uses a smart capacitance tester with a bright color VFD screen.

    Built-in 100Hz, 120Hz, 1kHz and 10kHz test frequencies, and provide 0.1V, 0.3V and 1V test levels, so that it can fully meet the use of general production sites.

    Built-in RS232C interface, compatible with SCPI programming language, it is easy to communicate with computer and complete all instrument functions.

    Built-in Handler interface, cooperate with RS232C interface to complete complex automatic control system.
FEATURES
  • Display: 3-Lines VFD
  • Correction function: OPEN and SHORT
  • View: ΔABS, Δ% or Sorting Result on 3rd Line
  • Comparator Function: P1,P2,P3,NG,AUX; 9-Bins optional.
  • Interface: RS232C and Handler
  • 1000V DC Super-impact protection
SPECIFICATIONS
Test FunctionsC,D
Accuracy0.1%
Measurement Frequency100Hz,120Hz,1kHz,10kHz
Measurement RangeAUTO/HOLD 6 Ranges
Measurement Speed3times/s, 8 times/s, 20 times/s
Display RangeC: 0.01pF – 9999.9μF
D, 0.00001 – 9.99999
Source Resistance30Ω and 100Ω
Monitor ParameterΔ, Δ%
Display Reader5 digits: 99999
Equivalent CircuitSerial and Parallel
Signal Level10.00mV~2.00V AC
100.0μA~20.00mA AC
Trigger ModeINT/HOLD/MAN
Comparator5-BINS P1/P2/P3/AUX/NG
Comparator ModePER
AdjustmentOPEN/SHORT Zeroing
Beep FeatureOFF/PASS/FAIL
InterfaceRS232/HANDLER
ProtocolSCPI
Power SupplyAC 98V-240V, 50Hz-60Hz
15W MAX
Dimension & Weight264(W)x107(H)x350(L)
4kg, net
APPLICATIONS
    Componets and materials measurement such as Inductor, Magnetic core, Ferrite core, Capacitor, Transformer and etc.
    Capacitor Sorting machine
